• Precise spacing of Reed Dents according to customer specifications.
• Use of carefully selected Reed Dents firmly secured with a special epoxy resin.
• Marking on Dent Steel at regular intervals according to customer requirements.

　Stamped Dents

　(Hardened and Tempered High Carbon Steel)

1. Quality of fabric is enhanced due to reduced frictional resistance to the warp.
2. Lateral surface roughness is reduced which partially contributes to the reduction in resistance to the warp.
3. The rounded cross-sectional shape of the stamped dents further contributes to this reduction in warp resistance.
4. Smooth surfaces and round edges also reduce the incidence of broken filament.
5. We guarantee that the reed will withstand maximum clamp pressures of 20-25 Nm.

Total length : Max. 15,340mm

Overall height : Max. 250mm

Reed density : Max. 40/cm

Width of dent : 12mm

Frame : Hard Type Alminum Channel

                  F(Width) X H(Height)

                    * 19mmX20mm

                    * 19mmX25mm

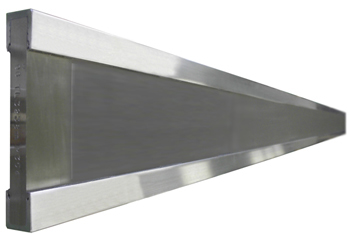

Side View of reed
