The TR-7600RC ON-LOOM REED CLEANER cleans the reed with the warp still drawn in. It automatically runs along the top of the reed as it cleans.
PRODUCTS
The TR-7600RC ON-LOOM REED CLEANER cleans the reed with the warp still drawn in. It automatically runs along the top of the reed as it cleans.
This product cleans the reed with the warp still drawn in. It automatically runs along the top of the reed as it cleans.
Previous versions of this device required an electrical power source, but our newest version is a battery-powered, re-chargeable product, allowing for cordless, easier cleaning.

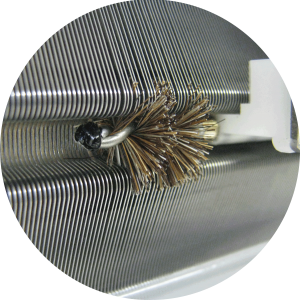

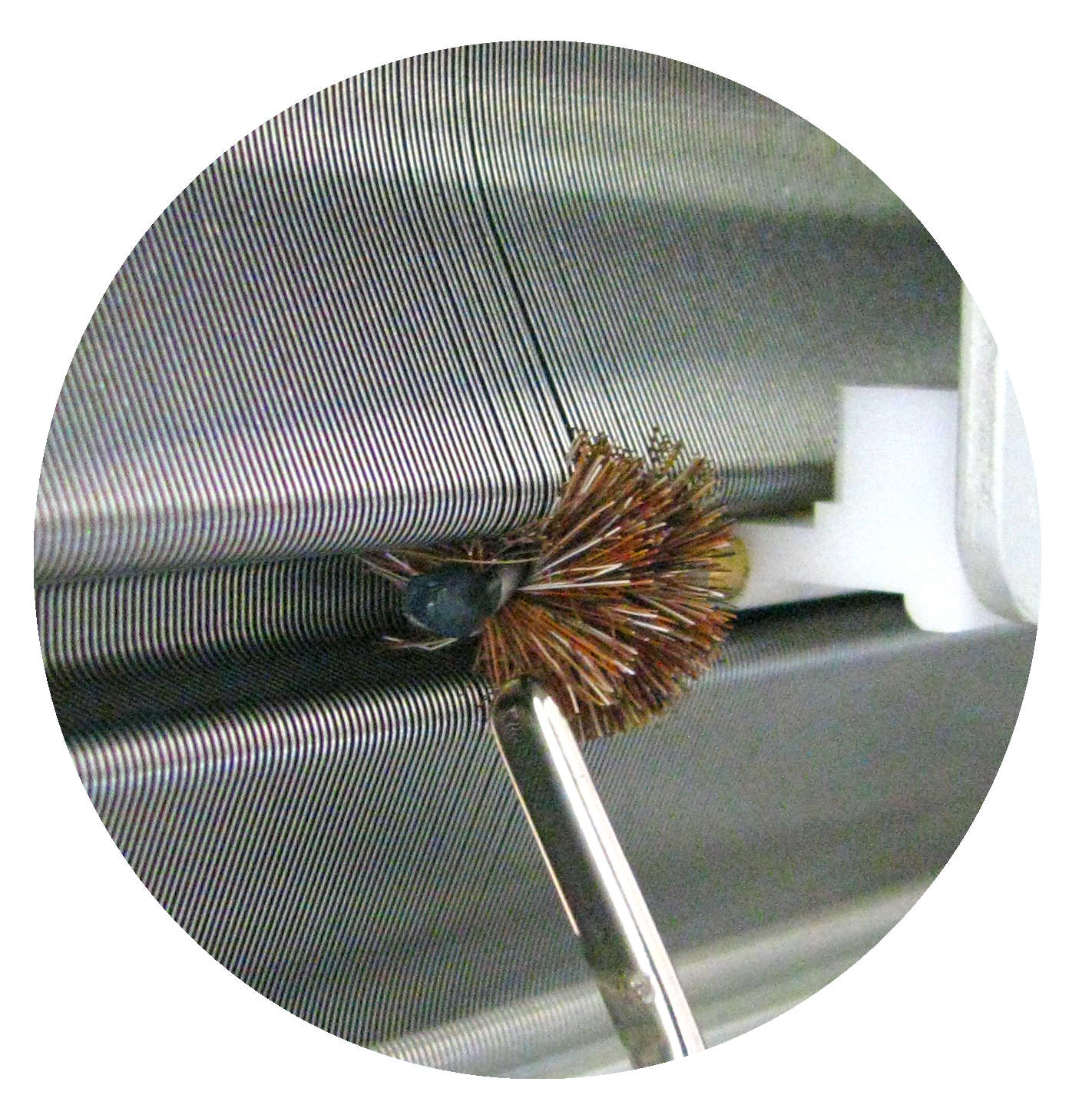

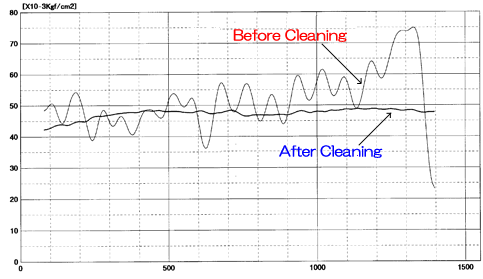

Debris build up in the tunnel groove can affect air flow, but is effectively removed with special brushes, contributing to stable loom operation.
This cleaner can be preset for automatic stopping.
|
Model
|
TR-7600RC
|
|
Mechanism
|
Special Brush Rotation (Moving along tunnel groove, left and right repeatedly)
|
|
Available Air Jet Loom Makers
|
All AJL Makers: Brush position adjustable depending on tunnel groove position. 【On Picanol AJL, at least 107mm space is required above the vertical position reed.】 |
|
Rotating Brush Component/Traveling Speed
|
1600 rpm (right and left reversible spin) / Approximately 50 cm/min
|
|
Rotating Brush Materials
|
Horse Hair
|
|
Power Source
|
Rechargeable, 100 V – 240 V Single Phase
|
|
Time required for full recharged
|
About 8 hours
|
|
Max. Cleaning time at full recharged
|
About 8 hours
|
|
Dimensions
|
210 mm ×160 mm × 113 mm
|
|
Weight
|
2.5 kg
|
