Following loom makers’ standards (TOYOTA and TSUDAKOMA), this device can easily measure air flow values of tunnel reeds.

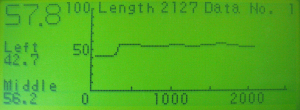

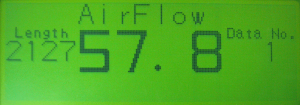

Tunnel air flow peculiarities caused by abrasion and debris can be measured continuously by the encorder and displayed digitally displayed. Graphs can also be displayed.
Up to 10 data sets from reeds with max. length of 5,000 mm can be stored.
The stored data can be transmitted to a PC via a USB cable connection.
The data transmitted to the PC also can be viewed in graph format and exported as a CSV file.

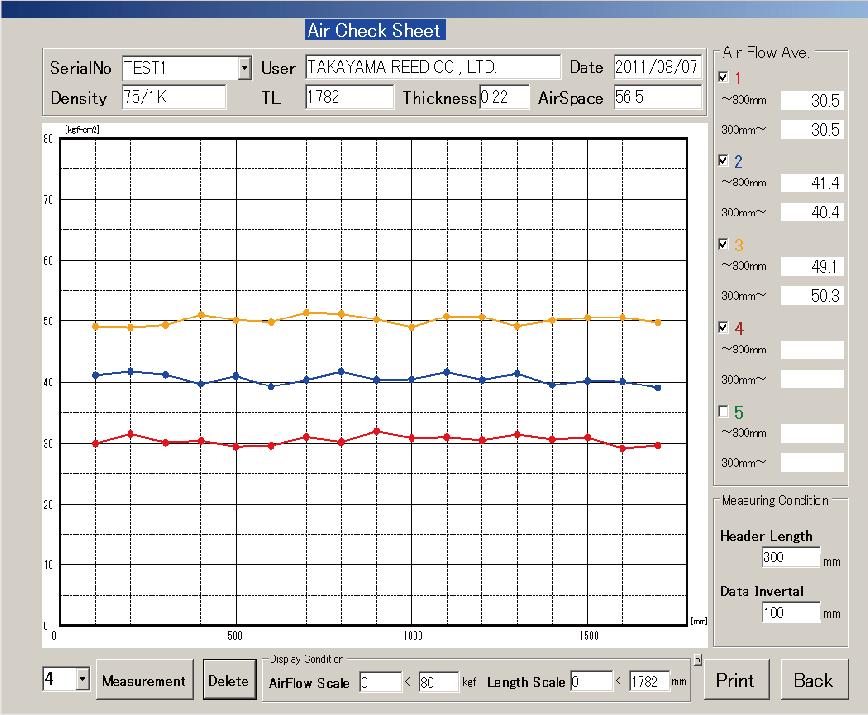

Computer Screen (Graph)

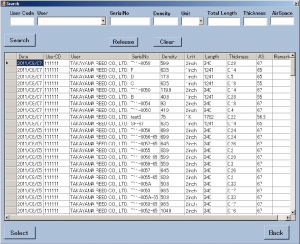

Computer Screen (Data retrieval)
|
Name
|

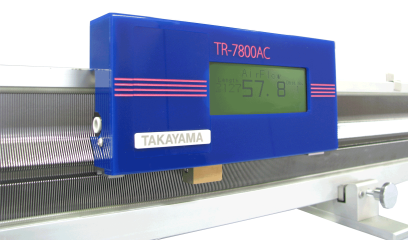

TR-7800AC
|
|
Use
|

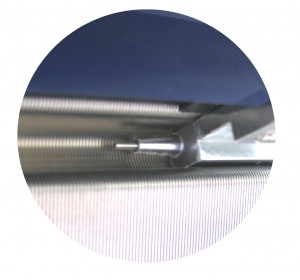

Equipment for measuring tunnel reed air flow level using an air jet nozzle and a pitot tube with display.
|
|
Applicable Air Jet Loom Makers
|
TSUDAKOMA, TOYOTA
|
|
Display Component
|

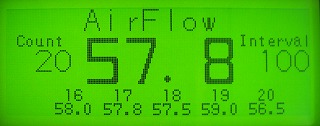

Numerical mode / Graph mode
|
|
Data storage capacity (Unit)
|
Max. 10 data of max. 5,000 mm (Continuous measurement by encorder)
|
| Data Output (PC) | Graphical display and CSV output |
| Air Supply Pressure | 0.6 MPa or more : Supplied from the loom regulator |
|
Power Supply
|
Type AA batteries : 2 pieces / USB power source
|
|
Dimensions
|
202 mm × 108 mm × 35 mm
|
|
Weight
|
700 g
|
