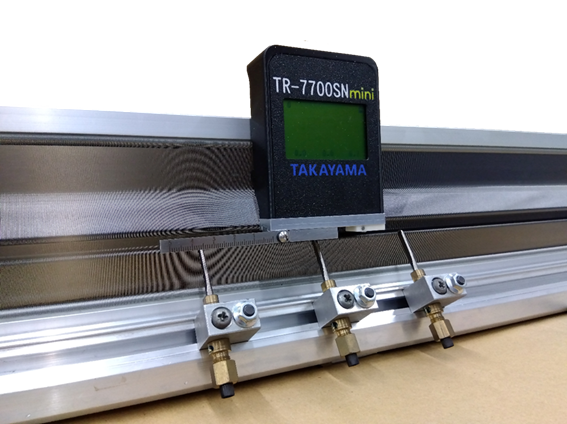

The TR-7700SN mini – SUB-NOZZLE INSPECTOR MINI – is compact model to display the jet stats of the sub-nozzle by point measurement. By flipping the ruler under the main unit, the distance from the sub-nozzle to the measurement point can be seen easily.
Three pitot tubes for measurement

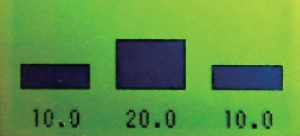

Display with bar graph
|
TR-7700SN mini
|
|
Equipment for measuring air pressure from sub-nozzle using three pitot tubes with display
|
|
Applicable for All Air Jet Loom Makers
|
|
Data Storage: Max. 60 sets (sub-nozzles) of displayed 3 values (pitot tubes) as point measurement
|
|
Data Output (PC): CSV output
|
|
Power Source: Rechargeable with SuperCapacitor (SC) About 3 minutes for full-recharging, About 1 hour as usage time at full-recharged, Over 100,000 times rechargeable (USB power supply 5VDC). |
|
Method of Fixation: Magnet (Lightly push the instrument to the reed)
|
|
Dimensions: 70mm x 98mm x 25mm
|
|
Weight: 200g
|
