The TR-7710SN SUB-NOZZLE INSPECTOR can visually display the jet stats of the sub-nozzle by continuous measurement. Measurement data can be transmitted to a PC via a USB connection, and can be displayed in graphs on a PC.
PRODUCTS
The TR-7710SN SUB-NOZZLE INSPECTOR can visually display the jet stats of the sub-nozzle by continuous measurement. Measurement data can be transmitted to a PC via a USB connection, and can be displayed in graphs on a PC.
This device displays visual confirmation of sub-nozzle air shower dispersion patterns which is a basic component of stable air jet loom operation, by measuring the air showers with an encorder.
This device can be used for reeds up to 5,000 mm in length (Up to 5 data sets) .
The stored data can be transmitted to a PC via a USB cable connection.
The data transmitted to the PC also can be viewed in graph format and exported as a CSV file.

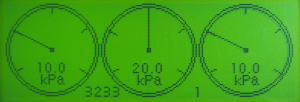

Analog meter mode

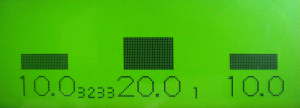

Bar graph mode
|
TR-7710SN
|
|

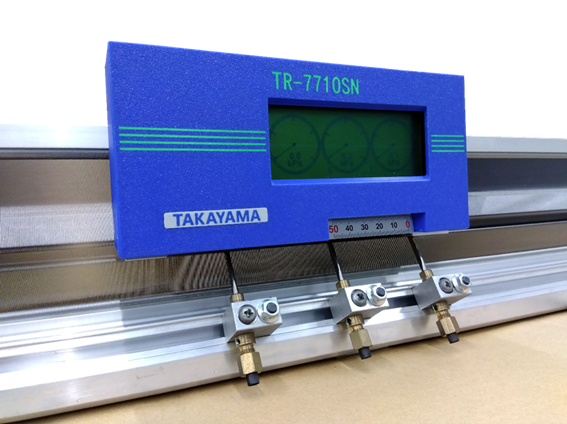

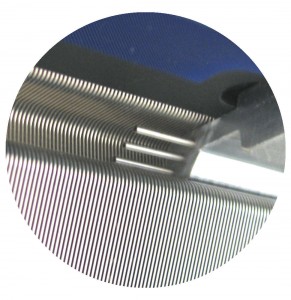

Equipment for measuring air pressure from sub-nozzle using three pitot tubes with display
|
|
Applicable for All Air Jet Loom Makers
|
|
Data Storage: Max. 5 data of max. 5,000mm (Continuous measurement by encoder)
|
|
Data Output (PC): Graphical display and CSV output
|
|
Power Source: Rechargeable with Hybrid Super Capacitor (HSC) About 1 hour for full-recharging, About 3 hours as usage time at full-recharged, Over 250,000 times rechargeable (USB power supply 5VDC). |
|
Method of Fixation: Magnetic (Lightly push the instrument to the reed)
|
|
Dimensions: 202 mm × 98 mm × 35 mm
|
|
Weight: 700 g
|
